51 31 241 Removing and installing/replacing rear window cover (top)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove REAR WINDOW

Detach cover (1).

Remove remnants of adhesive tape (2).

Clean bonding surface with spirit.

Air drying time: ≥ 1 minute

IMPORTANT: Adhesive area must be dry and free from dust and grease.

Once it has been cleaned, do not touch the adhesive area with bare hands.

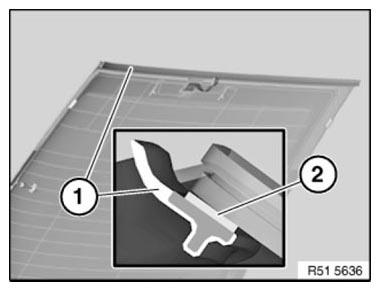

Fig 1: Identifying Cover And Adhesive Tape

G06885716

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Following INSTRUCTIONS for bonding components with double-sided adhesive tape.

Pretreat adhesive area with SikaCleaner-205 applicator.

Air drying time: ≥ 1 minute

Reposition lever (1) and open special tool 51 3 320 .

Fig 2: Reposition Levering

G06885717

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off protective film (2) in stages from adhesive tape.

Insert cover (1) in guide pulleys (3).

Fig 3: Inserting Cover In Guide Pulleys

G06885718

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool with contact rollers (1) up against upper window edge.

Align cover to window outer edge.

Fit cover and visually check for perfect seating.

Fig 4: Placing Special Tool With Contact Rollers

G06885719

Courtesy of BMW OF NORTH AMERICA, INC.

Reposition lever (1) and close special tool.

Make cover (3) is correctly seated in guide pulleys (2).

Fig 5: Repositioning Lever

G06885720

Courtesy of BMW OF NORTH AMERICA, INC.

Continue to pull off protective film (1) in stages from adhesive tape.

Run special tool with handwheel over entire upper window edge.

Fig 6: Pulling Protective Film

G06885721

Courtesy of BMW OF NORTH AMERICA, INC.
