Adjusting pre-tension on rear window

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

In order to avoid wind noises, rear window (1) must be lower than roof outer skin (2).

Position special tool 51 0 010 in middle of vehicle depending on measurement (A) and check underprotrusion of rear window (1).

A = 3.5 mm

X = measurement stages 1... 4 mm

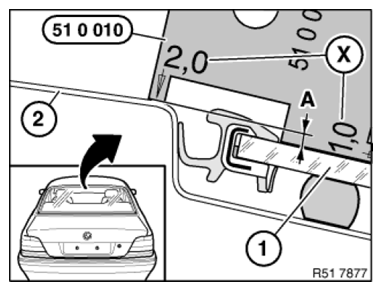

Fig 1: Checking Underprotrusion Of Rear Window
G06885715Courtesy of BMW OF NORTH AMERICA, INC.
