51 75... Removing and installing/replacing left or right tank cover

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.

Release all screws (2).

Unscrew nut (3).

Feed out tank cover (1) towards rear above tension strut (4).

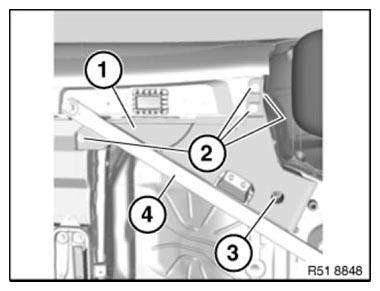

Fig 1: Identifying Tank Cover, Tension Strut, Nut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
