51 47 101 Removing and installing/replacing luggage compartment floor trim panel

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid.

Fold back luggage compartment floor trim panel (1) as pictured.

Release plastic nuts (2).

Remove luggage compartment floor trim panel (1) in direction of arrow.

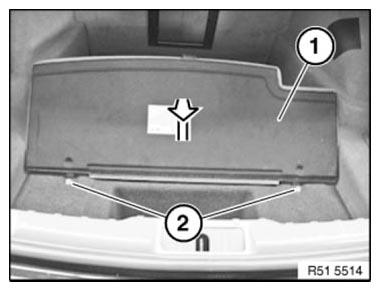

Fig 1: Removing Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
