51 47 077 Removing and installing/replacing illuminated rocker panel trim on rear left or right entrance (outer)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove REAR LEFT DOOR SILL COVER STRIP

Lift out cover (1) with special tool 00 9 317 in upward direction.

Disconnect plug connection (2).

Remove cover (1).

Fig 1: Lifting Out Cover With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove clips.

If necessary, lever clips out of entrance with suitable tool.

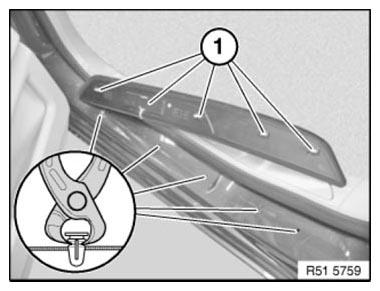

Fig 2: Identifying Finishing Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
