51 47 066 Removing and installing/replacing illuminated finishing strip on front left or right entrance

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT ENTRANCE COVER STRIP

Unclip cover (1) using special tool 00 9 317 .

Disconnect plug connection (2).

Remove cover (1).

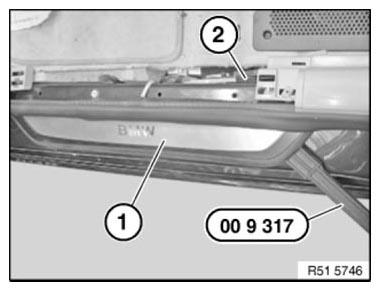

Fig 1: Removing Cover Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, replace faulty clips (1).

If necessary, lever clips out of entrance with suitable tool.

Fig 2: Identifying Finishing Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
