51 47 065 Removing and installing/replacing rocker panel trim on front left or right entrance (outer)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip clips (1) for cover (2) with special tool 00 9 317 .

Remove cover (2).

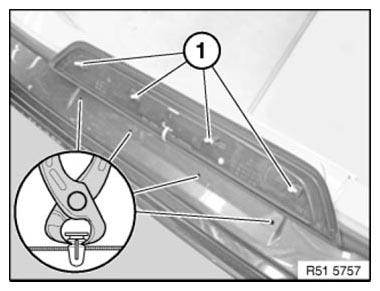

Fig 1: Removing Clips From Cover With Special Tool (00 9 317)
G06885947Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, replace faulty clips (1).

If necessary, lever clips out of entrance with suitable tool.

Fig 2: Identifying Finishing Strip Clips
G06885948Courtesy of BMW OF NORTH AMERICA, INC.
