51 14 000 Removing and installing/replacing front BMW badge
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage!

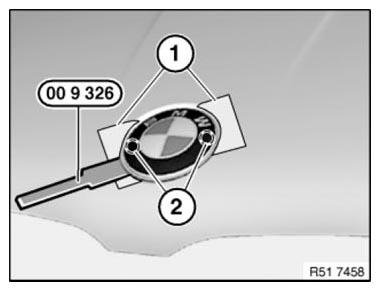

To avoid damaging the paintwork on the engine compartment lid, tape off edge areas (1) to sides of guide pins.
So as not to subject the BMW badge to excessive deformation, lever out the badge with special tool 00 9 326 at guide pins (2).
Installation note:
The following components must not be damaged or missing, replace if necessary:
- Badge
- Guide pins
- Grommets
- Adhesive tape as paint protection
