Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the BATTERY CABLE FROM THE NEGATIVE TERMINAL .
Remove FAN COWL with electric fan.
Remove the ALTERNATOR (not F04).
Remove both exhaust turbochargers. See EXHAUST TURBOCHARGER, RIGHT, CYLINDERS 1-4 and EXHAUST TURBOCHARGER, LEFT, CYLINDERS 5-8 .
Remove both exhaust manifolds. See LEFT EXHAUST MANIFOLD and RIGHT EXHAUST MANIFOLD .

Release screws (1).

Tightening torque 11 65 3AZ .

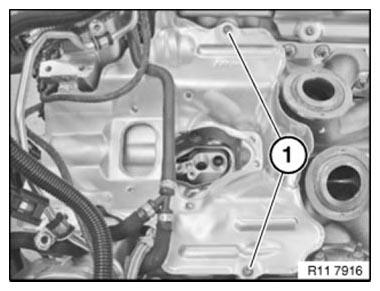

Fig 1: Identifying Screws

G06888847

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 3AZ .

Remove heat shield (2) towards top.

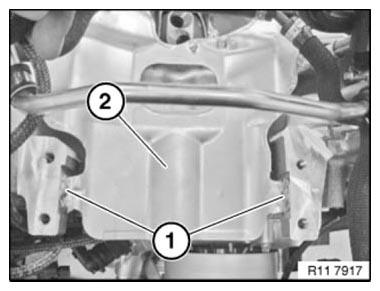

Fig 2: Identifying Screws And Heat Shield

G06888848

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 3AZ .

IMPORTANT: Risk of interchange on replacement of the heat shield.
Other shields are installed in the N63H and S63 engines.

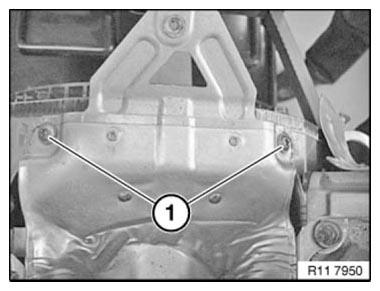

Fig 3: Identifying Heat Shield Screws

G06888849

Courtesy of BMW OF NORTH AMERICA, INC.

Release front screws on heat shield (1).

Tightening torque 11 65 3AZ .

Remove heat shield (1) towards top.

IMPORTANT: Risk of interchange on replacement of the heat shield.
Other shields are installed in the N63H and S63 engines.

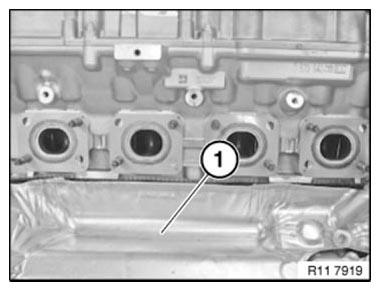

Fig 4: Identifying Front Screws On Heat Shield

G06888850

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
