Replace sealing ring

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (3) on engine oil line.

Remove engine oil line (2).

Release screws (3) on vacuum reservoir (4).

Tightening torque 11 65 6AZ .

Remove vacuum reservoir (4).

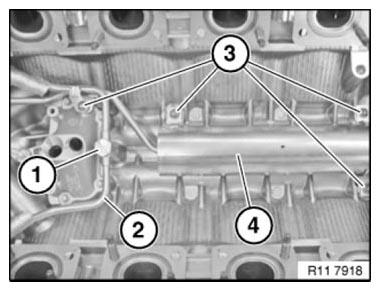

Fig 1: Identifying Banjo Bolt, Screws And Vacuum Reservoir
G06888901Courtesy of BMW OF NORTH AMERICA, INC.

Check VACUUM CONNECTIONS  for correct routing.

Check VACUUM SYSTEM FOR LEAKS  .

Assemble engine.
