Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Remove right INJECTION PIPE .
Remove THROTTLE VALVE
Release screws on intake plenum from above without fail before lowering front axle.
Secure ENGINE in installation position.
Lower FRONT AXLE , releasing screws on engine mount first
Release A/C compressor and place to one side. See REMOVING AND INSTALLING/REPLACING HEATING AND AIR CONDITIONING SYSTEM COMPRESSOR (N63, WITH DYNAMIC DRIVE) .

Detach engine ventilation hose (1).

Disconnect connector.

Unscrew nuts (2).

Tightening torque: 11 61 1 AZ .

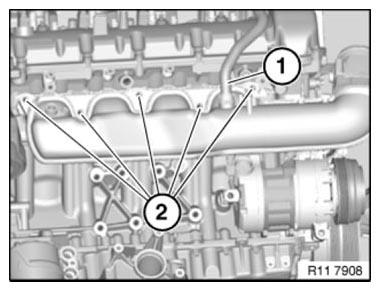

Fig 1: Identifying Engine Ventilation Hose And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove THROTTLE VALVE (2).

Release screw (1).

Tightening torque: 11 61 2 AZ .

Feed out intake plenum towards rear.

Installation note:

Replace all profile seals.

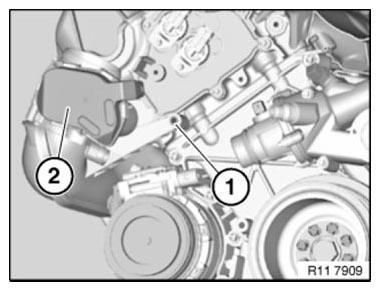

Fig 2: Identifying Screw And Throttle Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine and vehicle.

Check air intake system for leaks.
