Connections on EPPC

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connection (VAC) to vacuum reservoir.
  2. Connection (OUT) with ring to exhaust turbocharger.

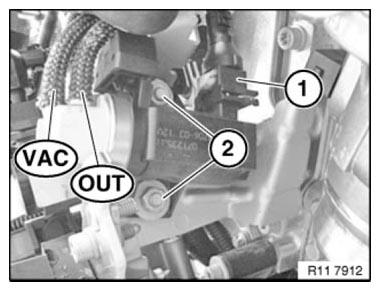

    Fig 1: Identifying Vacuum Reservoir Connection (VAC)
    G06888833Courtesy of BMW OF NORTH AMERICA, INC.
