Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Read out fault memory in DME control unit
Switch off ignition
Remove right INTERCOOLER
Release holder for electropneumatic pressure converter (EPPC) and carefully press to one side

NOTE: Solenoid valve (4) controls the inlet adjustment unit.
Solenoid valve (2) controls the exhaust adjustment unit.

Unlock plug connections of solenoid valves (2 and 4) and disconnect.

Installation note:

Plug connections must snap audibly into place!

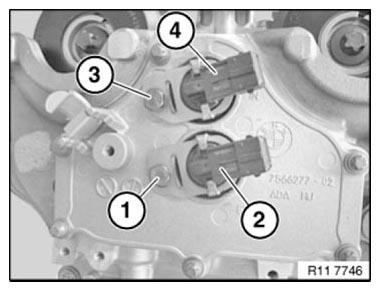

Fig 1: Identifying Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1 and 3).

Tightening torque 11 36 3AZ .

Pull out solenoid valves (2 and 4).

Installation note:
