MP = 150° before cylinder no. 1 firing TDC position

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

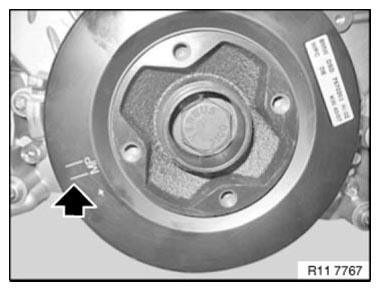

Fig 1: Identifying Mounting Position Of Special Tool 11 8 570

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 8 570 with dihedron on vibration damper in such a way that it can be secured with bolt (1) at the MP marking.

NOTE: Setting groove on crankcase, see arrow.

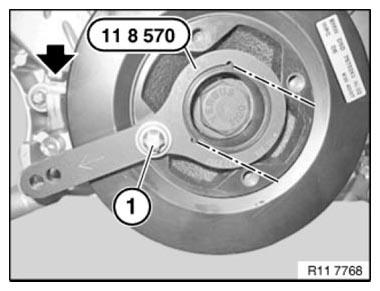

Fig 2: Positioning Special Tool 11 8 570 With Dihedron On Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at central bolt.

Secure vibration damper with special tools 11 8 570 and 11 9 190 at 150° before cylinder no. 1 firing TDC position.

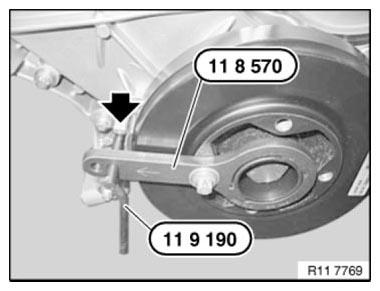

Fig 3: Securing Vibration Damper With Special Tool 11 9 190

Courtesy of BMW OF NORTH AMERICA, INC.

With cylinder no. 1 at 150° before firing TDC position, cams on exhaust camshaft (A) at cylinder no. 5 point at an angle to the left.

Cams on inlet camshaft (E) point at an angle downwards.

NOTE: For purposes of clarity, the graphic shows the inlet and exhaust adjustment units removed.

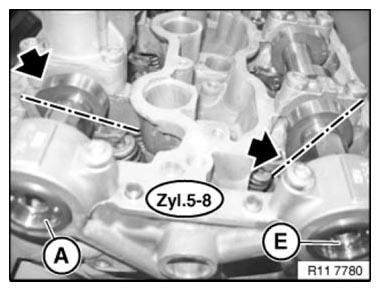

Fig 4: Identifying Cams On Inlet Camshaft Point At An Angle Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When the engine is shut down, the inlet and exhaust adjustment units are normally locked in their initial position.
The situation may arise in some individual cases where this initial position is not reached and the camshaft can continue to be rotated in the adjustment range of the camshaft adjuster.
In order to avoid incorrect timing adjustment, it is essential to check the locking of the camshaft adjuster and if necessary perform locking by rotating the camshafts.

Checking locking of intake and exhaust camshaft adjusters in initial setting:

Gripping hexagon head (2) of camshafts with a fork wrench (1), carefully try to rotate camshafts against direction of rotation.

The intake and exhaust camshaft adjusters are locked in the initial setting when the camshafts are non-positively connected to the adjusters.

Fig 5: Gripping Hexagon Head Of Camshafts With Fork Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: If the intake or exhaust camshaft adjusters of the camshafts "cannot" be locked as described, the adjuster is faulty and must be replaced.

Place special tool 11 9 893 on the exhaust camshaft and check timing adjustment.

NOTE: Timing is correctly adjusted when special tool 11 9 893 rests without a gap on cylinder head.

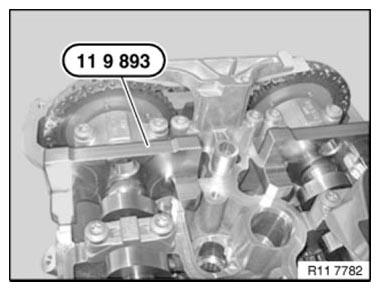

Fig 6: Identifying Special Tool 11 9 893 On Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 9 893 on intake camshaft and check timing adjustment.

NOTE: Timing is correctly adjusted when special tool 11 9 893 rests without a gap on cylinder head.

If necessary, adjust camshaft TIMING on left side.

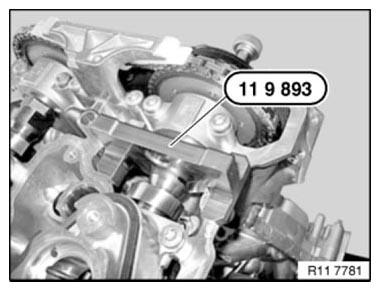

Fig 7: Identifying Special Tool 11 9 893 On Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
