Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Remove LEFT CYLINDER HEAD .
Remove RIGHT CYLINDER HEAD .
Remove camshafts. See LEFT INLET CAMSHAFT ; RIGHT INLET CAMSHAFT ; LEFT EXHAUST CAMSHAFT ; and RIGHT EXHAUST CAMSHAFT .

Mount cylinder head (1) on special tool 11 9 000 .

Fig 1: Mounting Cylinder Head On Special Tool 11 9 000

G06888683

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool 11 9 008 on special tool 11 9 006.

Fig 2: Preparing Special Tool 11 9 008 On Special Tool 11 9 006

G06888684

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 9 006 with silicone cushion on cylinder head.

Slide locks (1) in direction of arrow and pretension with eccentric shaft.

Fig 3: Sliding Locks In Direction Of Arrow And Pretension With Eccentric Shaft

G06888685

Courtesy of BMW OF NORTH AMERICA, INC.

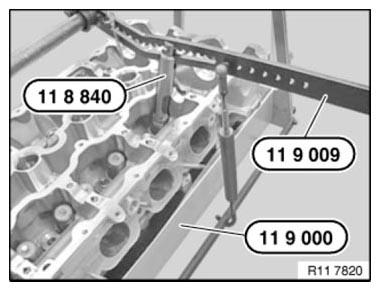

Press down valve spring with special tool 11 8 840 .

Fig 4: Pressing Down Valve Spring With Special Tool 11 8 840

G06888686

Courtesy of BMW OF NORTH AMERICA, INC.

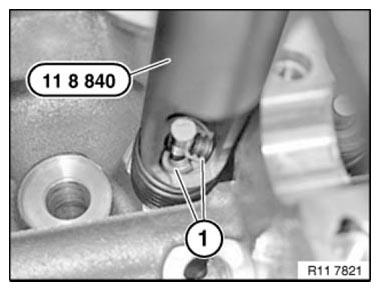

Remove valve cotters (1) with a magnet.

Place valve springs and valve keys on special tool 11 4 480 in an orderly manner.

Fig 5: Identifying Valve Cotters

G06888687

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Incorrect assembly possible.
Incorrect assembly will result in valve spring breakage.

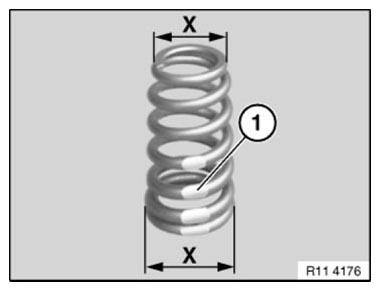

Color marking (1) is normally on lower end of valve spring.
Only the diameter is decisive for the correct installation of the valve springs.
Install valve spring so that larger diameter points to spring plate at bottom.

Fig 6: Dimensions Of Valve Spring

G06888688

Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement:

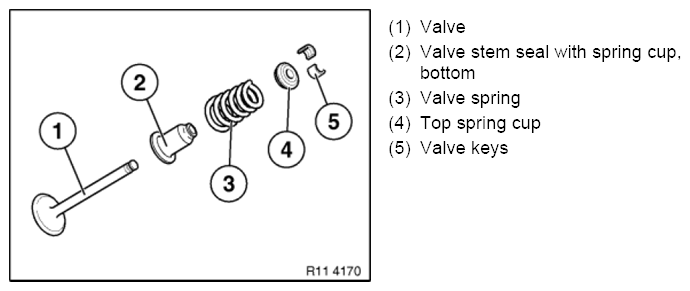

Fig 7: Exploded View Of Valve Assembly

G06888689

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
