Observe direction of engine rotation

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Crank engine at central bolt until marking (see arrow) is reached on vibration absorber.

Release screws (1).

Tightening torque 11 28 2AZ .

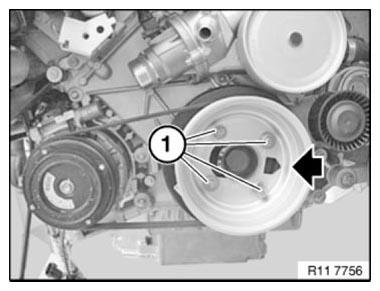

Fig 1: Identifying Crank Pulley Screws And Marking
G06888580Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Belt pulley is pretensioned.
Belt pulley tension is relieved abruptly during the cranking process!
NOTE: Crank engine at central bolt until marking (see arrow) is reached on vibration absorber.
Remove elasto-belt.

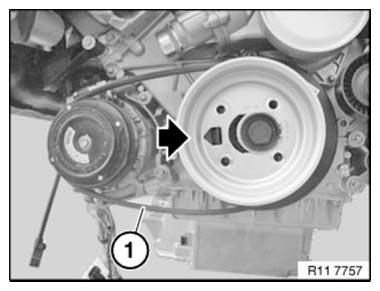

Fig 1: Identifying Marking Reached On Vibration Absorber
G06888581Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
