Coolant hoses do not need to be released!
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Belt tensioner is under high initial spring preload.

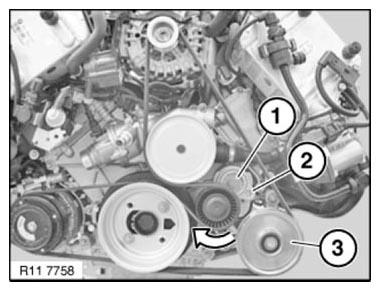

Slowly and carefully pre-tension belt tensioner (1) in direction of arrow up to stop.
Secure special tool 11 3 340 in dowel hole (2).
Belt tensioner in installation position.
Remove drive belt.
NOTE:
On vehicles which do not have a power steering pump, a deflecting element (3) is fitted in place of the power steering pump.
IMPORTANT:
Belt tensioner is under high initial spring preload.

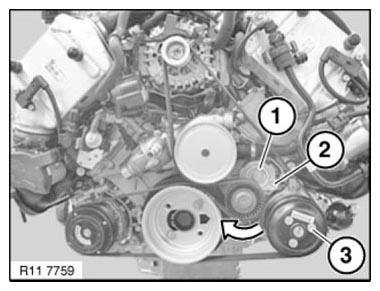

Put on the drive belt.
Remove special tool 11 3 340 from dowel hole (2).
Slowly relieve tension on belt tensioner (1).
Installation note:
Make sure drive belt is in correct installation position.
Assemble engine.
