Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Removing all PISTONS

Install new connecting rod bearing shells.

Install one blue bearing shell (1) and one red bearing shell (2) in each connecting rod.

Install PISTON .

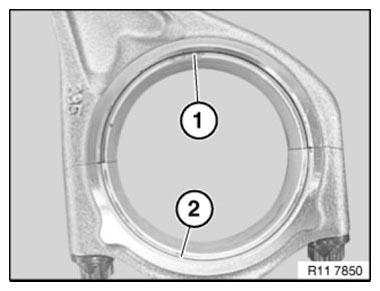

Fig 1: Identifying Blue Bearing Shell And Red Bearing Shell

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The bearing shells on the connecting rod are coded.

Connecting rod bearing cap (1): the red bearing shell is fitted and the fastening notches are on the left and right sides of the bearing shell (see arrows).

Connecting rod (2): the blue bearing shell is fitted and the fastening notches are one side of the bearing shell (see arrows).

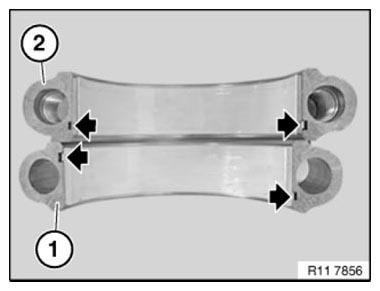

Fig 2: Locating Red Bearing Shell Fastening Notches And Blue Bearing Shell Fastening Notches

Courtesy of BMW OF NORTH AMERICA, INC.
