Check connecting-rod bearing play

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Piston in BDC position.

Fit special tool 00 2 590 (Plastigage type PG 1) to oil-free crankshaft.

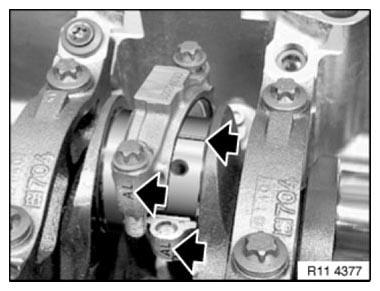

Fit bearing caps so that matching numbers match up.

Fig 1: Locating Special Tool 00 2 590

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not distort connecting rods or crankshaft.

Use connecting rod bolts to check connecting-rod bearing play.

Connecting rod bolts with special tool 00 9 120 .

Tightening torque 11 24 1AZ .

Fig 2: Checking Connecting-Rod Bearing Play

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing cap and read off bearing play at width of flattened plastic thread with assistance of measuring scale.

CONNECTING-ROD BEARING PLAY .

Remove plastic thread.
Lubricate crankshaft and bearing shells.
Install new connecting rod bolts.

Fig 3: Checking Connecting-Rod Bearing Play
Courtesy of BMW OF NORTH AMERICA, INC.

Secure connecting rod bolts with special tool 00 9 120 .

Tightening torque 11 24 1AZ .

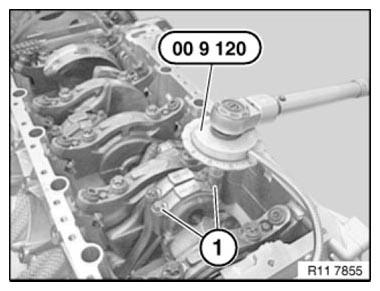

Fig 4: Securing Connecting Rod Bolts With Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
