1122513 Replacing roller bearing for dual-mass flywheel (N63): Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: FLYWHEEL removed!

Using hydraulic press (1) and special tool 21 2 051, press roller bearing out of dual-mass flywheel downwards on engine side.

IMPORTANT: Risk of damage:
Roller bearing must not be driven out.

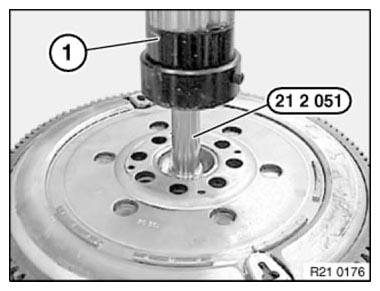

Fig 1: Pressing Roller Bearing Out Of Dual-Mass Flywheel Downwards On Engine Side

Courtesy of BMW OF NORTH AMERICA, INC.

Push roller bearing (2) onto special tool 21 2 052.

Using hydraulic press (1), press roller bearing into dual-mass flywheel as far as it will go on clutch side.

IMPORTANT: Risk of damage:
Observe press-in instruction:

Roller bearing must not be driven in.
Roller bearing mounting force/travel monitored:
Min. 2000 N 1 mm before end of pressing in.

Max. 15, 000 N during entire press-in procedure.

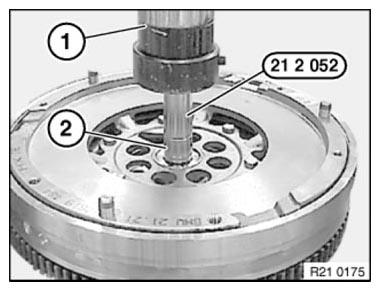

Fig 2: Pressing Roller Bearing Into Dual-Mass Flywheel
Courtesy of BMW OF NORTH AMERICA, INC.
