1122510 Removing and installing/replacing flywheel (transmission removed - N63): Notes
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

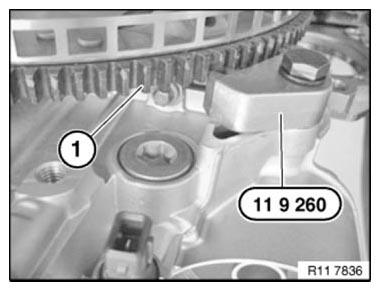

Secure flywheel (1) with special tool 11 9 260 .
Release flywheel screws in area (1).
Remove flywheel (2).
Installation:
Clean threads on flywheel screws in crankshaft.
Flywheel (2) is secured with an alignment pin.
Fit flywheel (2).
