Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Remove FLYWHEEL
Drain COOLANT

Release all screws in area (1).

Tightening torque 11 14 5AZ .

Remove end cover.

NOTE: Clean sealing surfaces with special tool 11 4 470 .

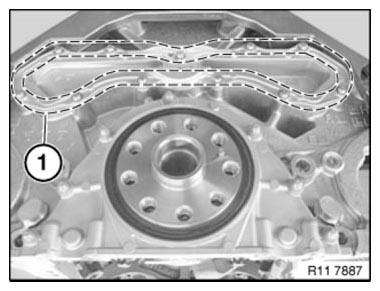

Fig 1: Identifying End Cover Screws Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:
