Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Drain off engine oil. See SERVICE - ENGINE OIL
Remove FLYWHEEL

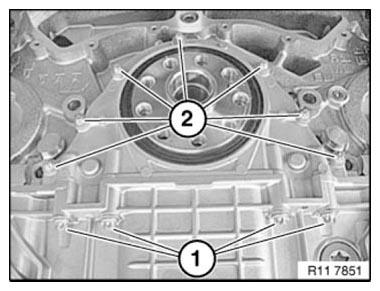

Release screws (1).

Unfasten screws (2).

Carefully remove end cover with radial crankshaft seal.

Fig 1: Identifying Radial Crankshaft Seal End Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

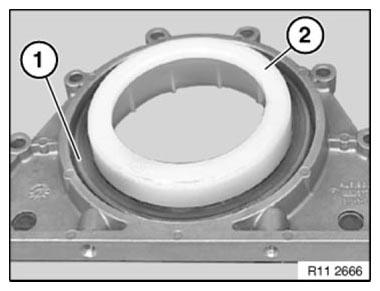

NOTE: Support bush (2) is included in delivery specification.
If the radial crankshaft seal (1) is stored for more than six months without the support bush (2), its operational reliability will no longer be guaranteed.
Radial crankshaft seal (1) must not be reused in this eventuality!
Support bush (2) remains in the radial crankshaft seal (1) and is used as a slip bush during described installation described below.

Fig 2: Identifying Support Bush And Radial Crankshaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The sealing lip of the radial crankshaft seal (1) is highly sensitive and must not be kinked.
Do not touch the sealing lip with your fingers.

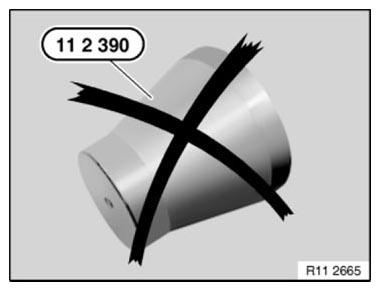

IMPORTANT: Special tool 11 2 390 must not be used.

When the radial crankshaft seal is installed, only the support bush included in the delivery specification may be used as a slip bush.

Fig 3: Precaution - Special Tool 11 2 390 Must Not Be Used

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

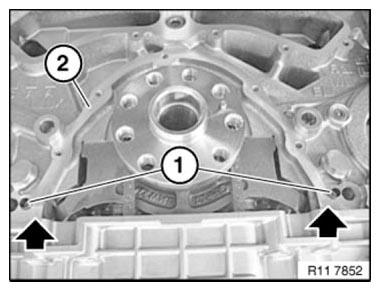

Check fitting sleeves (1) for damage and correct installation position.

Clean sealing surface (2) so that it is free from oil and grease.

Coat contact points on joint along oil sump (see arrows) with Drei Bond 1209.

Fig 4: Identifying Fitting Sleeves And Sealing Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Lightly oil running surface of crankshaft.

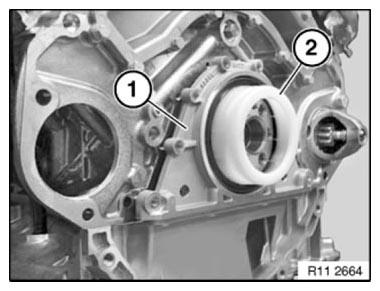

Fit end cover (1) with support bush (2) on crankshaft and push on carefully.

NOTE: Illustration shows (N62TU).

Fig 5: Identifying End Cover And Support Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws (2) and initially tighten without play.

Insert screws (1) and initially tighten without play.

Tighten down bolts (2) from inside outwards.

Tighten down screws (1) from inside outwards.

Tightening torque 11 14 4AZ .

Fig 6: Identifying Radial Crankshaft Seal End Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
