Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Drain ENGINE OIL .
Secure engine in INSTALLATION POSITION .
Lower FRONT AXLE .
Remove LOWER OIL SUMP SECTION .
Unclip wiring harness on oil sump.

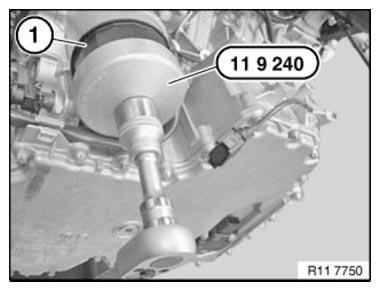

Remove oil filter cover with oil filter (1) with special tool 11 9 240 .

Tightening torque: 11 42 1AZ .

Fig 1: Removing Oil Filter Cover With Special Tool 11 9 240

Courtesy of BMW OF NORTH AMERICA, INC.

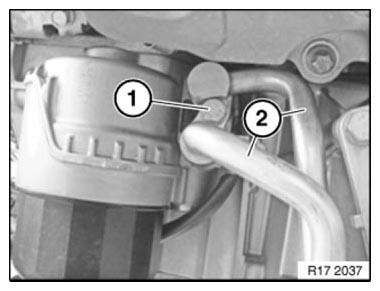

Release bolt (1). Remove oil pipes (2) from oil filter housing.

Release holders of supply/return lines on oil sump

Fig 2: Identifying Oil Pipes Screw

Courtesy of BMW OF NORTH AMERICA, INC.

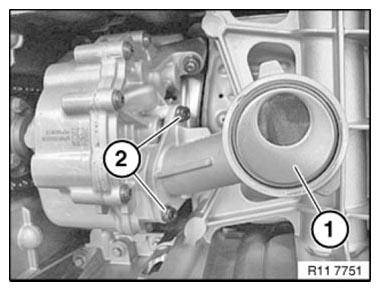

Unfasten screws (2).

Tightening torque: 11 41 1AZ .

Fig 3: Identifying Intake Pipe And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Identifying Transmission End Screws And Upper Oil Sump Section

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws in area of line (1).

Tightening torque 11 13 2AZ .

Release screws (2) on transmission end 24 00 1AZ .

Remove upper oil sump section (3).

Installation note:

Free sealing surfaces of seal debris and clean.

Replace gasket.

Modify oil pressure switch if replacing oil sump.

Assemble engine.
