36 10 209 Checking front and rear wheel for lateral and radial runout

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Check wheel bearings

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for LATERAL RUNOUT .

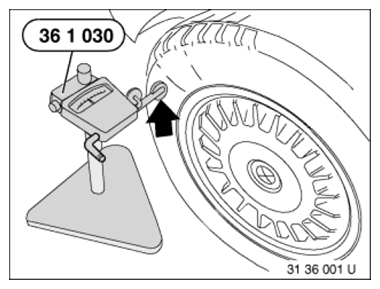

Fig 1: Checking Wheel Lateral Runout Using Special Tool (36 1 030)

G06890091

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for RADIAL RUNOUT .

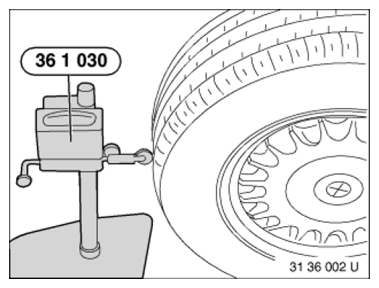

Fig 2: Checking Wheel Radial Runout Using Special Tool (36 1 030)

G06890092

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check LATERAL RUNOUT of rim with special tool 36 1 030 (measuring fixture).

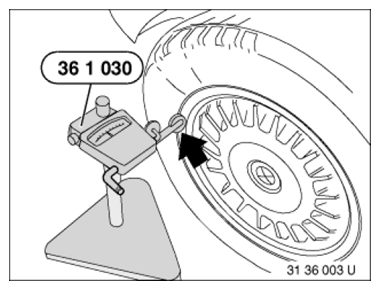

Fig 3: Checking Rim For Lateral Runout Using Special Tool (36 1 030)

G06890093

Courtesy of BMW OF NORTH AMERICA, INC.

Check RADIAL RUNOUT of rim with special tool 36 1 030 (measuring fixture).

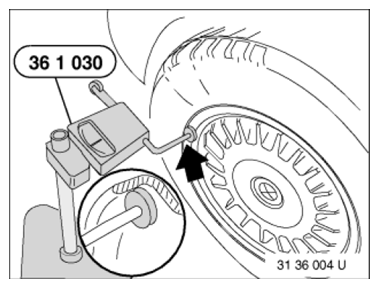

Fig 4: Checking Rim Radial Runout Using Special Tool (36 1 030)

G06890094

Courtesy of BMW OF NORTH AMERICA, INC.
