64 22 191 Removing and installing/replacing rear cabin fresh-air grille (High A/C system): Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR A/C SYSTEM CONTROL PANEL

Release screws (1).

Carefully press rear cabin fresh-air grille (2) forwards out of center console trim (3).

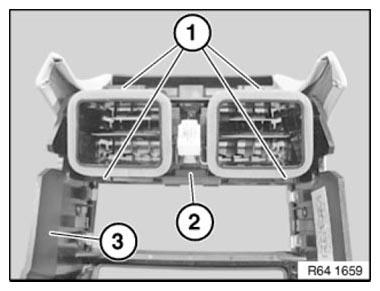

Fig 1: Identifying Rear Cabin Fresh-Air Grille And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
