64 22 138 Removing and installing/replacing right fresh-air grille: Installation

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Catches (1) of fresh-air grille (2) must not be damaged.

Make sure fresh-air grille (2) is correctly seated on fresh air duct behind.

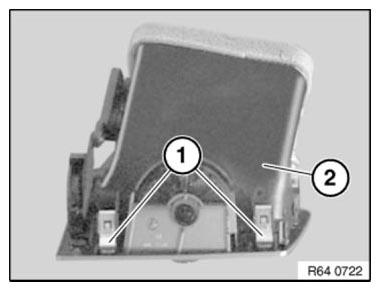

Fig 1: Identifying Fresh-Air Grille And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
