64 22 137 Removing and installing or replacing left fresh-air grille

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON LEFT

Release screws (1).

Pull out left fresh-air grille (2) towards front and unlock and disconnect plug connection behind.

Remove left fresh-air grille (2).

Fig 1: Removing Left Fresh-Air Grille And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1) of fresh-air grille (2) must not be damaged.

Make sure fresh-air grille (2) is correctly seated on fresh-air duct behind.

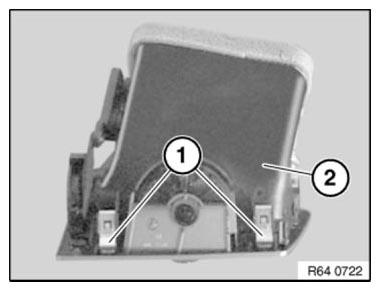

Fig 2: Identifying Fresh-Air Grille And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
