64 11 903 Replacing control panel for rear compartment air conditioning, left (right) (F02 only)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove HEADLINING FRESH AIR GRILLE .

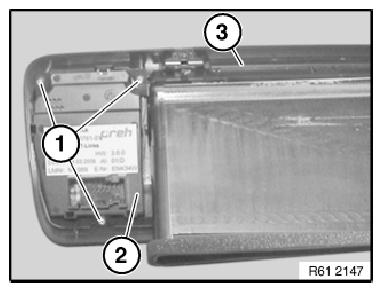

Release screws (1).
Remove control panel (2) from fresh air grille (3).
Installation note:
Make sure control panel (2) is correctly seated.
