61 31 321 Removing and installing/replacing radio and A/C control panel

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to vibration/shocks.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

IMPORTANT: Carry out installation in a dust-free workshop area only.

To avoid damage, do not touch or dirty the display field.

Necessary preliminary work:

Remove DECORATIVE STRIP ON INSTRUMENT PANEL IN MIDDLE

NOTE: Example illustration!

Release screws (1).

Carefully lever out radio and A/C control panel (2) with special tool 00 9 317 at points (3) in direction of arrow.

IMPORTANT: Assign keypad depending on optional equipment.

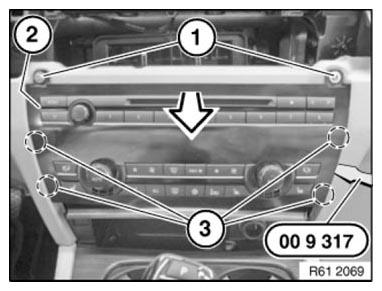

Fig 1: Removing Radio And A/C Control Panel Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Remove radio and A/C control panel (2).

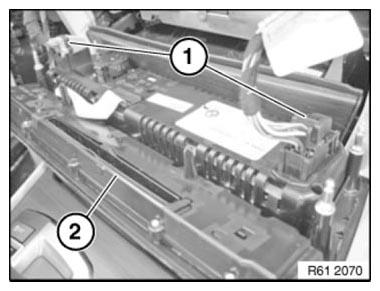

Fig 2: Identifying Radio And A/C Control Panel And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
