64 11 840 Replacing actuator drive for left footwell flap

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove INSTRUMENT PANEL TRIM

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATING AND AIR-CONDITIONING UNIT

Release screws (1) and remove grounding cable.

Installation note:

Replace screws (1).

Take off holder (2).

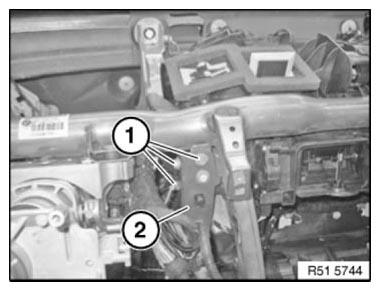

Fig 1: Identifying Holder And Screws

G06886202

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip connector piece (1) and slide downwards.

Installation note:

Latching of connector piece (1) must be felt.

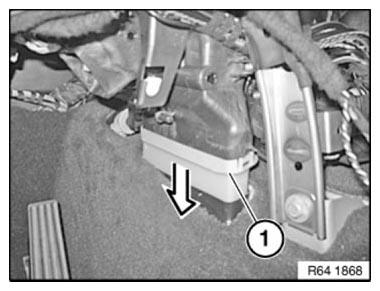

Fig 2: Unclipping Connector Piece

G06886203

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out left footwell air outlet duct (2).

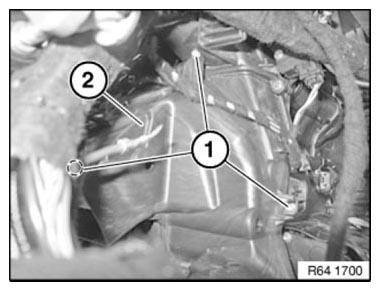

Fig 3: Identifying Left Footwell Air Outlet Duct And Screws

G06886204

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove servomotor (2) and unlock and disconnect plug connection (3).

Fig 4: Identifying Servomotor, Plug Connection And Screws

G06886205

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be readdressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and air conditioning function
Flap motors
Readdress flap motors
