64 11 837 Replacing actuator drive for right stratification flap: Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove INSTRUMENT PANEL TRIM
Position of actuator drive:
OVERVIEW OF ACTUATOR DRIVES ON HEATING AND AIR-CONDITIONING UNIT

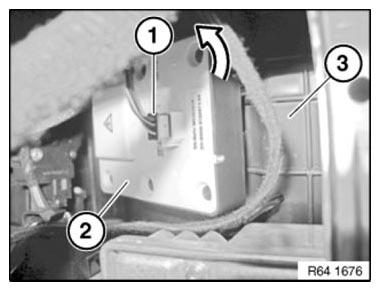

Disconnect plug connection (1).
Unlock ozone generator (2) in direction of arrow and remove towards front from filter housing (3).
Release screws (1).
Remove actuator drive (2) and unlock and disconnect plug connection (3).
