64 11 823 Replacing actuator drive for right rear cabin air blending flap: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove INSTRUMENT PANEL TRIM

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER

Release screws (1).

Installation note:

Replace screws.

Take off holder (2).

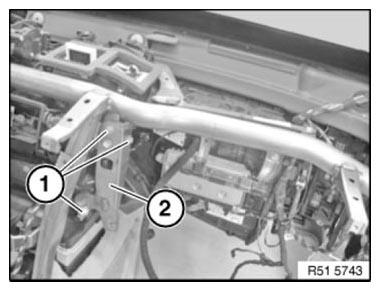

Fig 1: Identifying Holder And Screws

G06886226

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip connector piece (1) and slide downwards.

Installation note:

Latching of connector piece (1) must be felt.

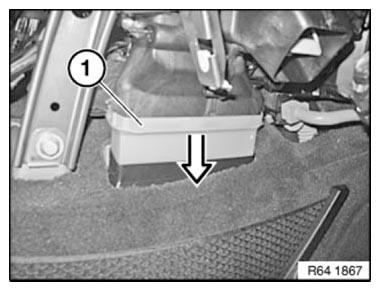

Fig 2: Unclipping Connector Piece

G06886227

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove air vent duct (2).

Installation note:

Ensure cable routing along air vent duct (2) is correct

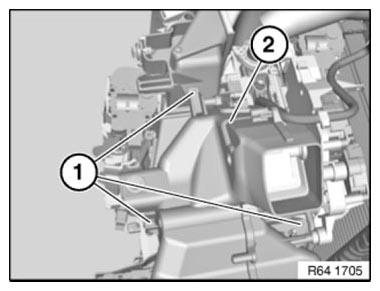

Fig 3: Identifying Air Vent Duct And Screws

G06886228

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove actuator drive (2) and unlock and disconnect associated plug connection.

Fig 4: Identifying Actuator Drive And Screws

G06886229

Courtesy of BMW OF NORTH AMERICA, INC.
