64 11 822 Replacing actuator drive for left rear cabin blending flap

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove INSTRUMENT PANEL TRIM

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER

Release screws (1) and remove grounding cable.

Installation note:

Replace screws (1).

Take off holder (2).

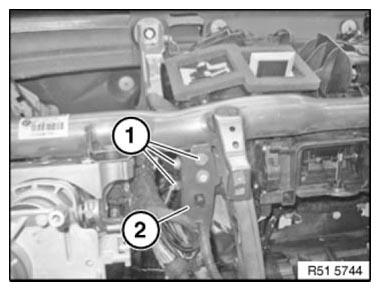

Fig 1: Identifying Holder And Screws

G06886206

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip connector piece (1) and slide downwards.

Installation note:

Latching of connector piece (1) must be felt.

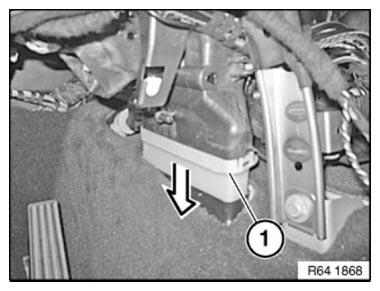

Fig 2: Unclipping Connector Piece

G06886207

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out air outlet duct (2)

Installation note:

Ensure correct cable routing air outlet duct (2).

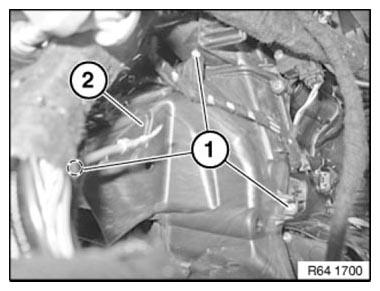

Fig 3: Identifying Air Outlet Duct And Screws

G06886208

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove servomotor (2) and unlock and disconnect plug connection (3).

Fig 4: Identifying Servomotor, Plug Connection And Screws

G06886209

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be re-addressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and A/C function
Flap motors
Re-address flap motors
