86 21... Removing lock striker fixture on rear lid: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

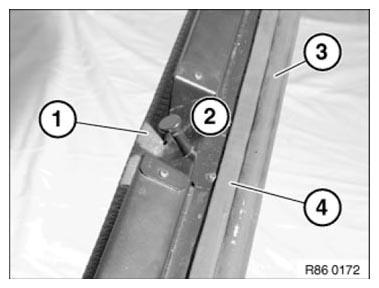

Grip rubber seal on seal piping (1) and pull off in area of lock striker fixture (2). Grip lid seal (3) on seal piping (4) and pull off in area of lock striker fixture (2).

Fig 1: Identifying Seal Piping, Lock Striker Fixture And Lid Seal

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Before drilling out rivets, drive in rivet pins with a punch.
Drill out rivets (1+2) and remove lock striker fixture (3).
