86 21... Removing hinge bracket on rear lid: Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Remove rear lid, refer to REMOVING LID.
Remove gas spring, remove gas spring on hinge side only, refer to REMOVING GAS SPRING.
Remove gas spring, remove gas spring on hinge side only, refer to REMOVING GAS SPRING.

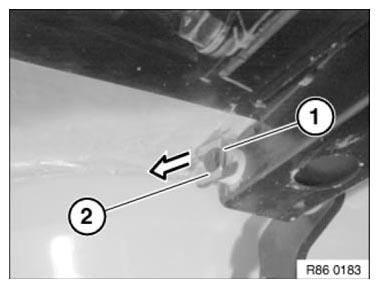

Raise edge (1) of retaining clip (2) and slide in direction of arrow towards rear.
Remove plastic washer (1). Pull hinge bracket (2) in direction of arrow out of mounting bracket (3).
