86 21... Removing centering pin from mounting bracket
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Exclusively for removal of pin, raise the hood in the GFP area. For raising, use a wooden block with a maximum width of 35 mm and a height of 45 mm. The length must be selected depending on the lifting platform securing point. Ensure the hood is secure on the blocks.

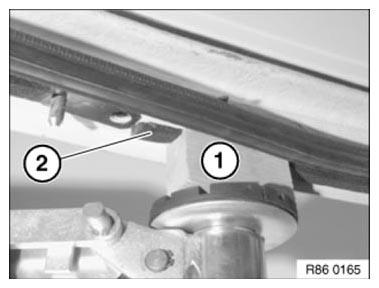

Position block (1) so that it is only located in area of sponge rubber seal (2).

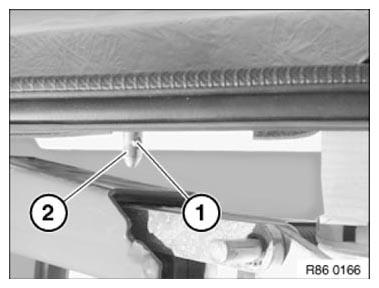

Insert a mandrel into hole (1) of pin (2) and turn counterclockwise.
