86 21... Installing seal for rear lid and side lid: Installation

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Always position end face of seal in a straight area only:

e.g. on cross-member or on upper hood ridge of rear lid.

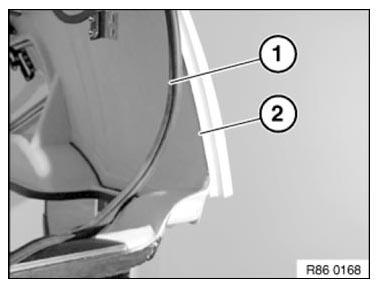

Fig 1: Identifying Seal Piping And Hood Ridge

Courtesy of BMW OF NORTH AMERICA, INC.

Suitable areas on side lids:

Upper and lower hood ridge.

Sealing lip of seal must point outwards.

After installing from inside and outside, check correct seating between lid seal and lid. Lid must rest without air on lid seal.
