86 21... Attaching/replacing BMW badge

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Position of attachment: inside of rear lid Remove plastic cover (1) from bore holes (2).

Fig 1: Removing Plastic Cover From Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Inserting a set of pointed pliers through bore holes (1), detach retaining washers (2) from pins of BMW badge.

Installation:

Use only new retaining washers.

Fig 2: Identifying Bore Holes And Retaining Washers

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Instruction for removing BMW badge:

Slide a blunt object (e.g. a wooden wedge) under the BMW badge and carefully lever off the badge.

Position of attachment: outside of rear lid The BMW badge must be attached at room temperature.

Degrease bonding area with petroleum ether.

Rub down bonding area with a dry cloth.

Peel off protective film on BMW badge (1).

Insert BMW badge (1) with pin (2) into bore hole (3). If bore holes (3) are considerably larger than pin (2), optically align BMW badge (1) exactly.

Press down BMW badge (1) firmly.

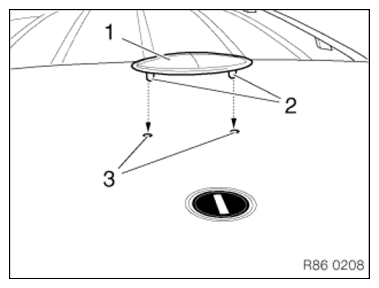

Fig 3: Identifying BMW Badge, Pin And Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Position of attachment: inside of rear lid

By inserting a 1/4" ratchet with extension and socket wrench insert (7 mm A/F) through bore holes (2), attach a retaining washer (1) in each case to pin of BMW badge. In so doing, press down on outside of rear lid with one hand on BMW badge and grip.

Push on relevant retaining washer (1) as far as it will go.

Fig 4: Identifying Retaining Washer And Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Position of attachment: inside of rear lid Insert plastic cover (1) in bore holes (2).

Fig 5: Inserting Plastic Cover In Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.
