86 21... Adjusting hood pretension - Camloc fastener with spacers: Locking

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Press hood in lid frame downwards by hand. Turn Camloc fastener clockwise until it is heard and felt to lock into place. Wing (1) of Camloc fastener is parallel to outer edge of hood.

Fig 1: Unlocking Camloc Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

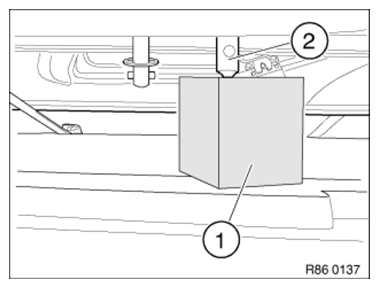

Raise hood and place block (1) between centering pin (2) and platform. Lower hood and position centering pin (2) on block (1).

Fig 2: Positioning Centering Pin On Block

Courtesy of BMW OF NORTH AMERICA, INC.

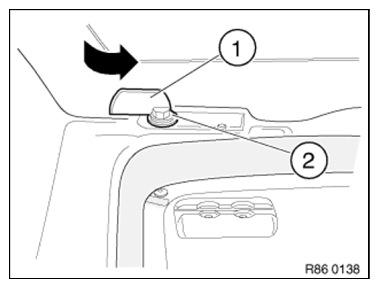

Remove spring nut (1) from Camloc fastener (2).
