Becker&Sohne twin-strut underfloor platform

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

The BMW multi-trailer can only be raised if it is supported at right angles to the direction of travel. For raising, use the high additional supports (1) of Becker&Sohne.

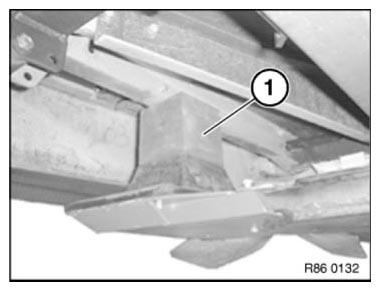

Fig 1: Identifying Becker & $ Sohne Supports
G06886774Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION: Also lash the BMW multi-trailer to the flat girder bridges of the lifting platform. Flag the protruding tow hitch and the drawbar member of the BMW multi-trailer conspicuously so as to prevent injury, e.g. with a red cloth.
