24 11 010 Removing and installing/sealing or replacing transmission sump (GA6HP26Z) (N63): Notes

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Remove transmission sump only after it has cooled down.

After completion of work, check TRANSMISSION OIL LEVEL .

Use only approved TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove rear UNDERBODY PROTECTION with side guides

Remove oil drain plug (1).

Tightening torque 24 11 2AZ .

Drain automatic transmission oil.

Installation note:

Replace oil drain plug.

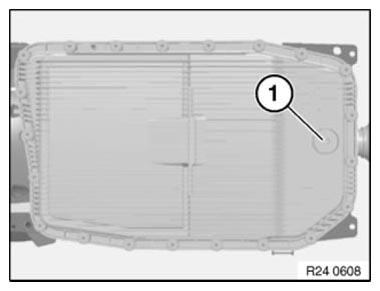

Fig 1: Identifying Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

Catch and dispose of escaping transmission oil.

Observe country-specific waste-disposal regulations.

Unscrew all bolts.

Remove transmission sump (1).

Installation note:

Insert screws (2) until screw heads make contact.

Insert all further screws in diagonal sequence from inside to outside until screw heads make contact.

Tightening torque 24 11 1AZ .

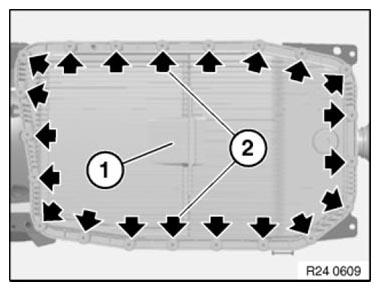

Fig 2: Locating Transmission Oil Sump And Screw Head Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gasket (1) from transmission sump.

Clean transmission oil sump to remove residual oil.

Clean sealing faces and groove with a cloth.

Insert new gasket in transmission sump groove.

IMPORTANT: Do not degrease transmission sump with cleaning agent.

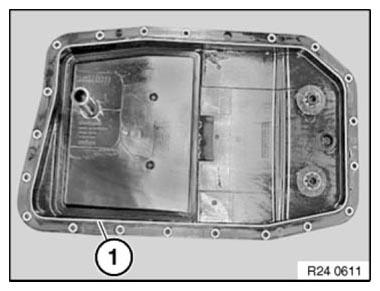

Fig 3: Identifying Gasket Of Transmission Sump

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing ring (1) on oil filter tube.

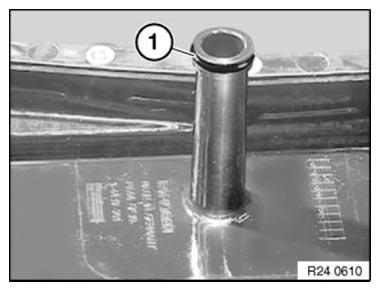

Fig 4: Identifying Sealing Ring On Oil Filter Tube

Courtesy of BMW OF NORTH AMERICA, INC.
