Necessary preliminary work

• Read out the fault memory of the DME control unit.
• Switch off ignition.
• Disconnect BATTERY EARTH LEAD .
• Remove left and right INTAKE SILENCER HOUSINGS .
• Remove intake duct on left and right.
• Partially release WIRING HARNESS  for engine.

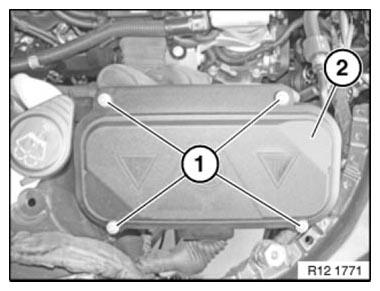

Release screws (1).

Tightening torque 12 90 2AZ .

Remove electronics box cover (2).

Fig 1: Identifying Electronics Box Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

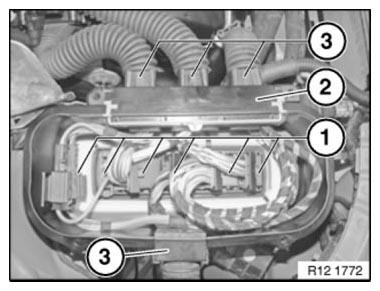

Unlock all connectors (1) from control unit and disconnect.

Unclip grommet hold-down device (2) and remove.

Detach rubber grommets (3) from electronics box. Place wiring harnesses to the side.

Installation note:

Make sure grommets are correctly fitted (watertightness).

Fig 2: Identifying Control Unit Connectors, Grommet Hold-Down Device And Electronics Box Rubber Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

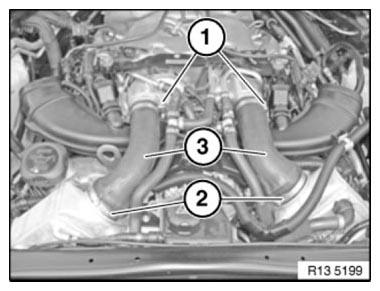

Release clamps (1) and (2).

Replace clamps (2).

Detach both charge-air ducts (3) and remove.

Check the gaskets on the exhaust turbocharger. replacing if necessary.

Fig 3: Identifying Charge-Air Ducts And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

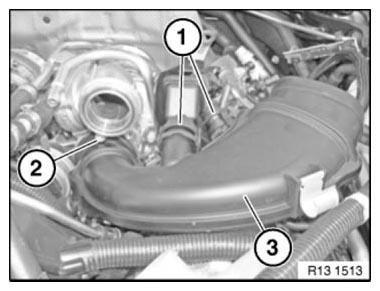

Detach hoses (1) from clean-air pipe.

Release screw (2).

Tightening torque 13 71 1AZ .

Detach clean-air pipe (3) in direction of travel from exhaust turbocharger.

Check the gasket on the clean air pipe. replacing if necessary.

Fig 4: Identifying Clean-Air Pipe, Hoses And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 12 51 2AZ .

Unlock plugs on injectors and ignition coils and detach.

Release wiring harness (2).

Release wiring harness (3) and lay to one side.

Fig 5: Identifying Screws, Wiring Harness And Wiring Loom

Courtesy of BMW OF NORTH AMERICA, INC.

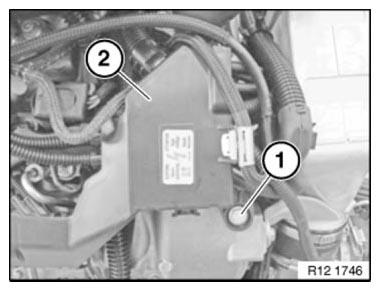

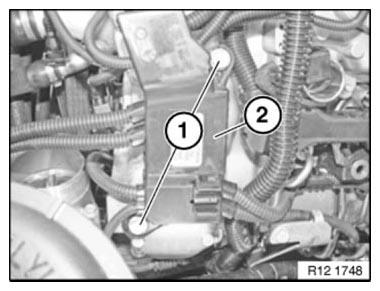

Release screw (1).

Tightening torque 12 51 2AZ .

Raise cable duct (2).

Fig 6: Identifying Cable Duct And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

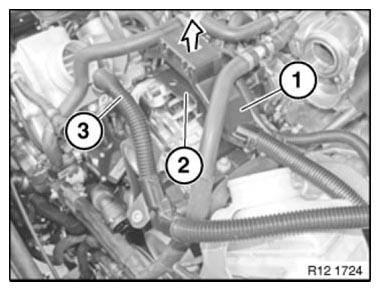

Pull off cable duct (1) from cable clip (2) in upward direction.

Cable (3) does not have to be released.

Fig 7: Identifying Cable Duct, Cable Holder And Holder Cable

Courtesy of BMW OF NORTH AMERICA, INC.

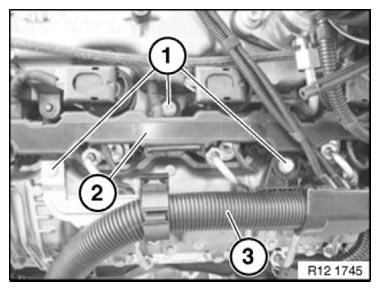

Release screws (1).

Tightening torque 12 51 2AZ .

Raise cable duct (2).

Fig 8: Identifying Cable Duct And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

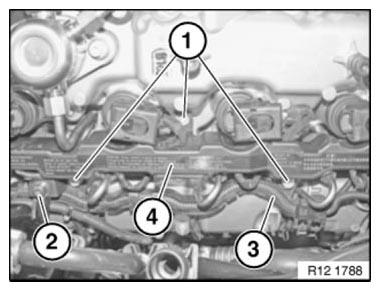

Release screws (1).

Tightening torque 12 51 2AZ .

Release screw (2).

Unlock plugs on injectors and ignition coils and detach.

Lay wiring harness (3) to one side.

Feed out air wiring harness (4) and remove.

Fig 9: Identifying Screw, Wiring Harness And Wiring Loom

Courtesy of BMW OF NORTH AMERICA, INC.
