Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2014 BMW Alpina B7L. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.
Disconnect BATTERY EARTH LEAD .
Remove right ENGINE SUPPORT ARM .

Release connector (1) and remove.

Slacken nut (2).

Tightening torque 12 42 2AZ .

Detach starter positive cable.

Fig 1: Identifying Starter Connector And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 12 41 1AZ .

Disengage cable (2) from holder.

Pull out starter in direction of travel, feed out and remove.

Installation note:

When replacing the starter, convert cable holder for cable (2).

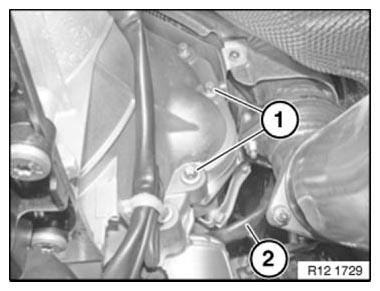

Fig 2: Identifying Starter Screws And Holder Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check starter pinion and starter ring gear for damage. If necessary, replace damaged components.

Reassemble the vehicle.
