Injector adjustment

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2014 BMW Alpina B7L. However, it is still accessible from the selected car via links, so may be relevant.

If the DME control unit has been replaced, it will also be necessary to carry out adjustment of the injectors!

Injector adjustment is carried out with the aid of so-called adjustment values.

The adjustment values are printed in two blocks of three digits on each injector.

The adjustment values must be stored in the new control unit!

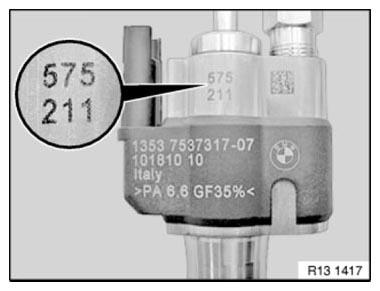

Fig 1: Identifying Adjustment Value Printed In Blocks Of Digits On Injector

Courtesy of BMW OF NORTH AMERICA, INC.

If injector adjustment is not carried out, the engine may run roughly or fail to start.

Read off the adjustment values and enter according to the installation location (cylinder) of the injectors:

Connect BMW diagnosis system
Identify vehicle
Select "Function selection"
Select "Service functions"
Select "Engine electronics"
Select "Adjustment function"
Select "Adjust injectors"
Select "Test plan"
The adjustment value must be entered for each cylinder.

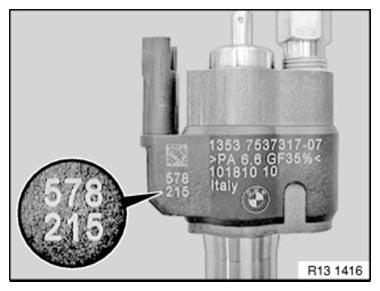

Fig 2: Identifying Adjustment Value Printed In Blocks Of Digits On Injector
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Delete fault memory.
Vent COOLING SYSTEM for intercooler.
