Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2014 BMW Alpina B7L. However, it is still accessible from the selected car via links, so may be relevant.

Read out fault memory of DME control unit; if necessary, work through test schedules
Switch off ignition
Remove right INTAKE FILTER HOUSING

Unlock plug (1) and remove.

Release screw (2).

Tightening torque 13 62 3AZ .

Remove pulse generator (3).

Installation:

Replace sealing ring and coat with anti-seize agent.

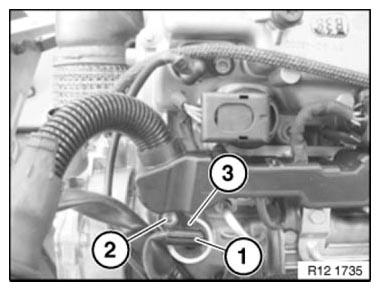

Fig 1: Identifying Pulse Generator, Screw And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Now clear the fault memory.
