Installation location

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2014 BMW Alpina B7L. However, it is still accessible from the selected car via links, so may be relevant.

On transmission housing at bottom right.

Release connector (1) and remove.

Release screw (2).

Tightening torque 13 62 4AZ .

Withdraw pulse generator (3) from transmission housing.

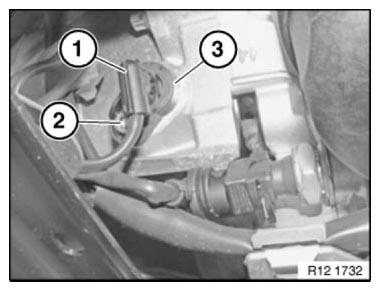

Fig 1: Identifying Pulse Generator Connector And Screw
G06888966Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Delete fault memory.
