Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2014 BMW Alpina B7L. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.
Remove IGNITION COILS .

IMPORTANT: Wear safety goggles.
Oil and dirt particles may get into your eyes!

Clean spark plug slot with compressed air.

Unscrew spark plugs with special tool 12 1 220 and extension with min. 8° bend.

Fig 1: Unscrewing Spark Plugs With Special Tool (12 1 220)

G06888942

Courtesy of BMW OF NORTH AMERICA, INC.

Attach new spark plug (1) to special tool 12 1 230 .

Fig 2: Attaching Spark Plug To Special Tool (12 1 230)

G06888943

Courtesy of BMW OF NORTH AMERICA, INC.

Screw spark plug with special tool 12 1 230 hand-tight into cylinder head plug thread as far as it will go.

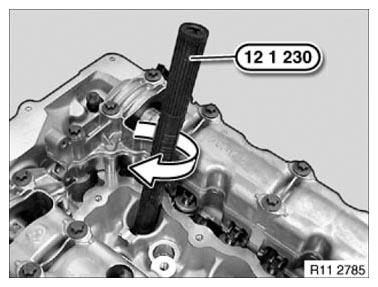

Fig 3: Screwing Spark Plug With Special Tool (12 1 230)

G06888944

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten spark plugs with torque wrench, special tool 12 1 220 and extension with min. 8° bend.

Observe tightening torque.

Tightening torque 12 12 2AZ .

Fig 4: Tightening Spark Plugs With Torque Wrench, Special Tool (12 1 220)

G06888945

Courtesy of BMW OF NORTH AMERICA, INC.
