34 41 135 Replacing both Bowden cables for parking brake

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with GENERAL INFORMATION .

Bowden cables may only be replaced in pairs.

Necessary preliminary work:

Remove ACTUATOR UNIT with control unit for parking brake

Bowden cable, left:

Release union nut (1).

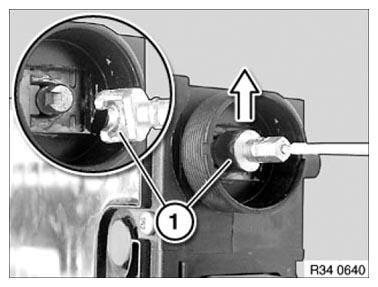

Fig 1: Identifying Union Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 34 41 5AZ .

Pull Bowden cable (1) out of actuator unit (2).

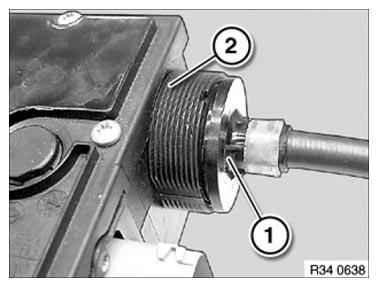

Fig 2: Identifying Bowden Cable And Actuator Unit

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure all parts are absolutely clean.

Turn spindle (1) out of actuator unit (2) and remove Bowden cable.

Installation note:

Lubricate new spindle with grease provided.

Insert spindle (1) 3 turns into inner spline shaft of actuator unit (2).

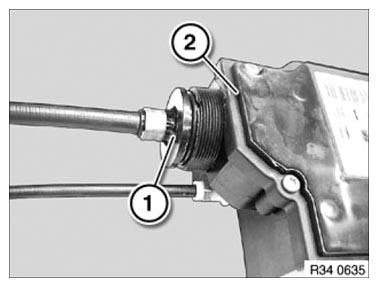

Fig 3: Identifying Spindle And Actuator Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Bowden cable, right:

Release union nut (1).

Installation:

Tightening torque 34 41 5AZ .

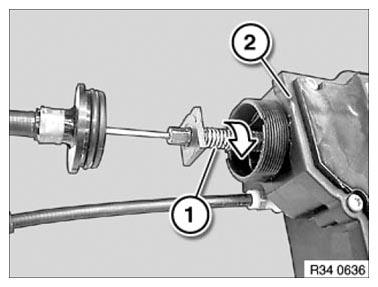

Fig 4: Identifying Union Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Pull Bowden cable (1) out of actuator unit (2).

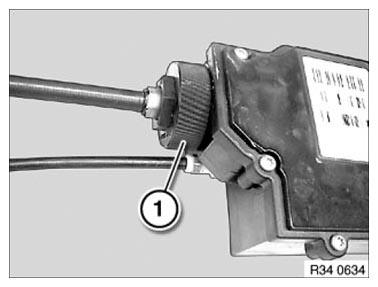

Fig 5: Identifying Bowden Cable And Actuator Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock locking sleeve (1) and pull out of housing a little.

Fig 6: Identifying Locking Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Snap out coupling (1) in direction of arrow.

Fig 7: Identifying Snap Out Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out initial operation/function test in BMW diagnosis system.
- Path:
  - Function selection
  - Service functions
  - Chassis
  - Parking brake
  - Initial operation/function test
