Mobile brake disc lathe

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Only BMW-approved brake disc lathes may be used!

In the case of mobile brake disc lathes, the brake calipers and brake anchor plates must be removed.

The brake discs remain on the car.

Refer to the equipment manufacturer's instruction manual for the exact procedure.

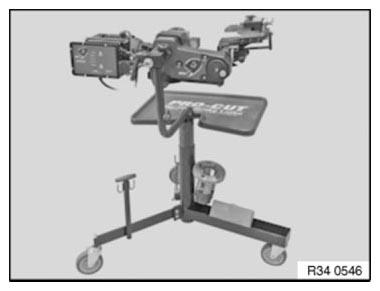

Fig 1: Mobile Brake Disc Lathe
G06889940Courtesy of BMW OF NORTH AMERICA, INC.

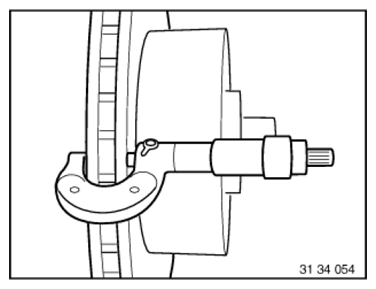

After fine-grinding the brake discs, measure the THICKNESS DIFFERENCE inside the braking surfaces at 8 points with an external micrometer.

Fig 2: Measuring Braking Surface Thickness Using External Micrometer
G06889941Courtesy of BMW OF NORTH AMERICA, INC.
